DMF-ZM electromagnetic pulse valves are right-angle valves, the same as those of the “Z” series. They are suitable for connecting air tank to the blow tubes. Their inlets and outlets are provided with retaining nuts for installation purposes, for easy installation and operation of the valves.
Description

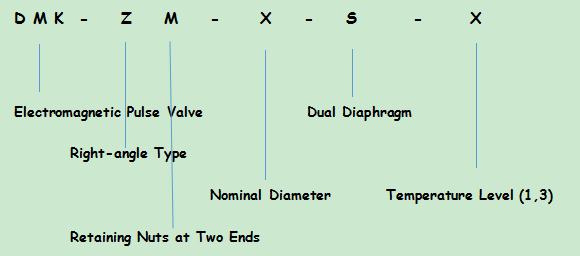

Type Definition
Specification
| Type | DMF-ZM-20 | DMF-ZM-25 | DMF-ZM-40S |
| Diaphragm Diameter (mm) | Ø80 | Ø96 | Ø114 |
| Flow Coefficient(Kv/Cv) | 17.55/20.48 | 26.16/30.53 | 45.82/53.47 |
| Blowing Area (m2) | 3.5-6 | 8-10 | 12-16 |
| Air Inlet/Outlet Size | Ø27Ø27 | Ø34Ø34 | Ø48Ø48 |
| Weight (kg) | 0.9 | 1.3 | 2.0 |
